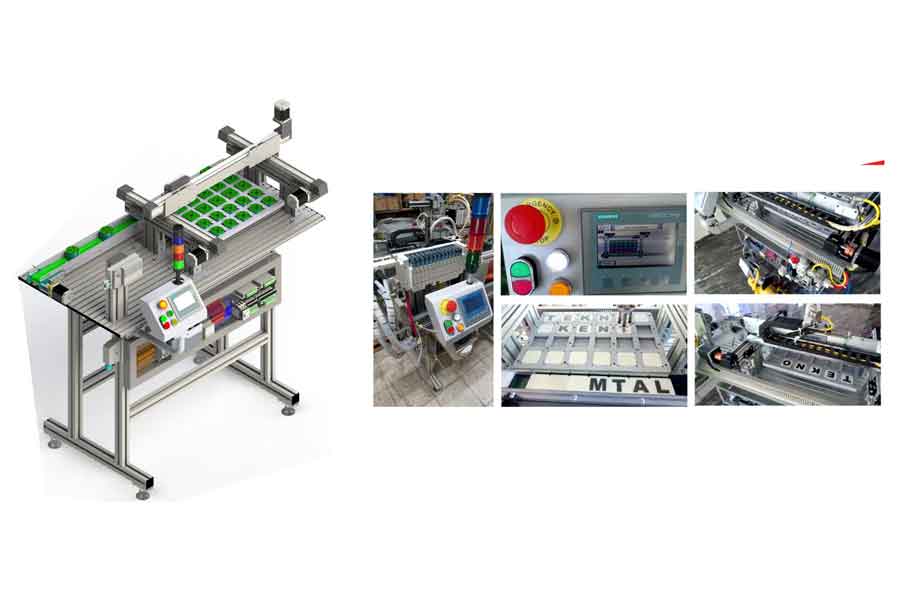

Axis Control Training Set

Workpieces of different characteristics in the station are separated by sensors according to the type and shape of the material. By using 3 axes with step motor control, it is ensured that the right cover is attached to the right workpiece. The transfer process takes place by vacuum. Siemens S7 1200 1212C CPU was used on the training set. The number of inputs and outputs has been increased with expansion modules. Monitoring and control of the process are provided with the KTP 400 screen. Optionally, other sets can be added to the set to make it more functional. Step motor controlled axes are SMC branded (Japanese made), valve terminal is SMC Ex600 model. All pneumatic elements are SMC (Japanese) branded. Automation elements are Siemens (German) brand.
